Default DIY Speaker Building, Repairing, & Upgrading

Please post your DIY speaker projects in this thread. It will be very helpful if you include pictures.

Check the following:
  1. Big Daddy's DIY speakers with full-range drivers in Post #116, Post #176, and Post #194. Also, Post #912, Post #918, Post #920, Post #946, Post #948, and Post #949 in my gallery.
  2. Istoc's 3-Way DIY speakers in Post #231.
  3. Reference 's Front Speakers and Center Channel Speaker building threads.
  4. Beerserker's DIY speakers in Post #105.


==================================================


COMPONENTS OF A SPEAKER DRIVER










How a Speaker Works Animation:

http://static.howstuffworks.com/flas...er-working.swf


IMPORTANT LINKS FOR SPEAKER KITS, PARTS, REPAIRS, AND UPGRADES


Introduction to Electronics:
http://www.101science.com/Radio.htm

Speaker Kits
http://www.parts-express.com/pe/show...number=300-702, Watch the videos at the end of the page.
http://www.parts-express.com/webpage...ctGroup_ID=769
http://www.parts-express.com/wizards...omo=&srchAttr=
http://www.parts-express.com/pe/show...gn=email013113
http://www.gr-research.com/index.asp...ATS&Category=2
http://www.zalytron.com/
http://www.theloudspeakerkit.com/sho...egoryType=kits
http://www.occamaudio.com/kits.html
http://www.selahaudio.com/id268.html
http://meniscusaudio.com/systems-kits-c-133.html
http://www.madisound.com/catalog/index.php?cPath=178
http://www.pispeakers.com/catalog/default.php
http://www.solen.ca/pub/index.php?q=...50cmVyPSZpPTQ=
http://www.decware.com/newsite/speakers.html
http://www.linkwitzlab.com/Wood%20Ar...%20LL-home.htm
http://www.woodartistry.com/speakers/index.html
http://speaker-parts.worldomain.net/...aker_Kits.html
http://www.seas.no/index.php?option=...d=28&Itemid=38
http://www.fountek.com.au/products/ss-kit/
http://www.craftyhands.net/Audio.htm
http://www.steinaudio.com/


Exotic Speaker Design
http://www.parts-express.com/project...m?project=hoss
http://www.parts-express.com/project...ect=TheSyphons
http://www.parts-express.com/project...roject=Colossi
http://www.linkwitzlab.com/
http://www.frugal-horn.com/


Speaker Buiding Books
http://www.amazon.com/Loudspeaker-De.../dp/1882580109
http://www.amazon.com/Speaker-Buildi...217891&sr=8-27
http://www.amazon.com/Designing-Buil...8217749&sr=8-1
http://www.amazon.com/Introduction-L...8217724&sr=8-2
http://www.parts-express.com/wizards...CAT&srchCat=72
http://search.barnesandnoble.com/boo...-9780240520148
Many Speaker Building Titles: http://www.partsconnexion.com/books.html

Speaker and Crossover Design & Calculators:
http://www.diyaudioandvideo.com/
http://forum.blu-ray.com/subwoofers/...-settings.html

Understanding Speaker Technology:
http://www.ht-audio.com/pages/SpeakerBasics.html
http://www.ecoustics.com/Home/Home_A...les/alpha.html
http://www.educypedia.be/electronics/loudspeakers.htm
http://www.fostexinternational.com/d...erview_1.shtml


Full-Range Drivers
http://fullrangedriver.com/forum/
http://fullrangedriver.com/singledriver/
http://diyaudioprojects.com/Drivers/FE127E/FE127E.htm
http://www.fostexspeakers.com/fostex.html
http://www.markaudio.com/
http://www.voxativ.com/eng/


Super Tweeters
Parts, Repairs, and Upgrades
http://meniscusaudio.com/index.php
http://www.parts-express.com
http://www.partsconnexion.com/ (Located in Canada)
http://creativesound.ca/ (Located in Canada)
http://www.speakerrepair.com/mm5/merchant.mvc
http://www.reliablehardware.com/
http://www.newfoam.com/wood.asp
Active & Passive Crossovers: http://www.marchandelec.com/index.html
Active Crossovers: http://www.creativesound.ca/products.php?make=Reckhorn
Resetting Loose Driver Magnets: http://www.audiokarma.org/forums/sho...d.php?t=202963
Dave Schulte, Upgrade Company: http://upgradecompany.com/
Vintage Audio Repair: http://www.oldsoundequipment.com/index.html
http://www.solen.ca/pub/index.php?q=...50cmVyPSZpPTQ=
http://www.speakerex.com/
http://www.simplyspeakers.com/
http://www.speakercity.com/Merchant2/merchant.mvc?
http://www.madisound.com/
http://www.oaktreeent.com/Polk-Audio_Speaker_Parts.htm
http://www.speakerdoctor.com/diaphragms.html
http://www.lab-acoustics.com/shop/?cart=171309&cat=1&
http://www.mcmelectronics.com/
http://www.e-speakers.com/
http://www.onlyfactorydirect.net/
http://www.goldpt.com/prices.html
http://www.mouser.com/search/Default.aspx

Cabinet Coverings
Vinyl Laminate Covering
http://www.parts-express.com/webpage...ctGroup_ID=135

Veneer Covering
http://www.parts-express.com/webpage...ctGroup_ID=832

Melamine Covering
http://www.parts-express.com/webpage...ctGroup_ID=828

Speaker Terminals & Binding Posts
http://www.parts-express.com/wizards...AT&srchCat=417
http://www.parts-express.com/wizards...TOKEN=97751564
http://www.parts-express.com/wizards...TOKEN=97751564

Speaker Gasketing Tape
http://www.parts-express.com/webpage...ctGroup_ID=818

Screws and T Nuts
http://www.profhdwr.com/55008.htm
http://www.parts-express.com/webpage...ctGroup_ID=829
http://www.parts-express.com/webpage...ctGroup_ID=830
http://www.parts-express.com/webpage...ctGroup_ID=831

Spikes and Isolation Feet:
http://shop.ebay.com/items/?_nkw=spe...ikes&_osacat=0
http://www.oregondv.com/spikes.htm
http://www.parts-express.com/wizards...hFilter=spikes
http://www.reliablehardware.com/
http://www.av-outlet.com/index.html?...tml&lang=en-us
http://www.soundproofcow.com/sound-i...n-control.html
http://www.drillspot.com/tag/vibration-isolator/
http://www.fullcompass.com/product/316672.html
http://www.fullcompass.com/product/239266.html
http://www.fullcompass.com/product/239265.html
http://www.fullcompass.com/product/239264.html

Casters:
https://www.sescasters.com/scripts/i...rface=products
http://www.homedepot.com/webapp/wcs/...atalogId=10053

Cabinet Dampening Material:
Acousta-Stuf Polyfill 1 lb. Bag, $10.80
http://www.parts-express.com/webpage...up_ID=137&SO=2

You can use Poly-Fil filler material available at Wal-mart and most craft and fabric stores. They are a lot cheaper.
http://www.amazon.com/Air-lite-Premi...6325423&sr=8-1
http://www.poly-fil.com/fiberfill.asp

Vinyl Sound Damping Sheet 10" x 13", $4.25 ea + Shipping
http://www.parts-express.com/pe/show...number=268-030

1/2" Acoustic Foam, 18" x 24", $8.97 ea + Shipping
http://www.parts-express.com/pe/show...number=260-520

1" Acoustic Foam, 18" x 24", $12.23 ea + Shipping
http://www.parts-express.com/pe/show...number=260-525

More Dampening Material:
http://www.raamaudio.com/cgi-bin/index.cgi?p=pr

Understanding Dampening:
http://www.tnt-audio.com/clinica/spe...stuffed_e.html

Last edited by Big Daddy; 02-06-2013 at 09:35 AM.
  Reply With Quote
Old 12-02-2009, 11:10 AM   #2
Big Daddy Big Daddy is offline
Blu-ray Champion

Big Daddy's Avatar

Jan 2008
Southern California
79
122
1
Default

MY POLK UPGRADE PROJECT

I own a pair of Polk RTA-15TL. They were the top-of the line non SDA Polk speakers from 1990 to 1992. They were listed for $1,400 back then and I paid $1,100 for them. These are the specifications:

Drivers
One 1 inch (25 mm) SL 3000 Dome Tweeter
Four 6.5 inch (165 mm) Trilaminate Polymer Bass-Midrange Drivers (6503)
Two 10 inch (254 mm) Sub-Bass Radiators, One High-Resonance, One Low-Resonance
Frequency Response
20 Hz - 26 kHz
-3 db Limits
35 Hz - 25kHz
Recommended Amplification
30-250 Watts/Channel
Impedance
Compatible with 8 Ohms Output
Efficiency
90 db
Size
43"H (109.2 cm), 12.5" W (31.7 cm), 15.5" D (39.4 cm)
Shipping Weight
77 lbs (34.9 kg)

Polk Audio has developed new silk dome tweeters (RD0198-1) that fit the Polk RTA and SDA models. They are about $150 a pair, but if you join Club Polk, you get a discount and they will charge you only $100. It is always a good idea to get your spouse involved. I asked Mrs. Big Daddy to call Polk and order the new tweeters. She is catching the upgraditis virus very fast. They arrived after a few days and I got busy. Here is a pictorial demonstration of how I replaced the tweeters.




This picture is taken with the old SL 3000 tweeter:






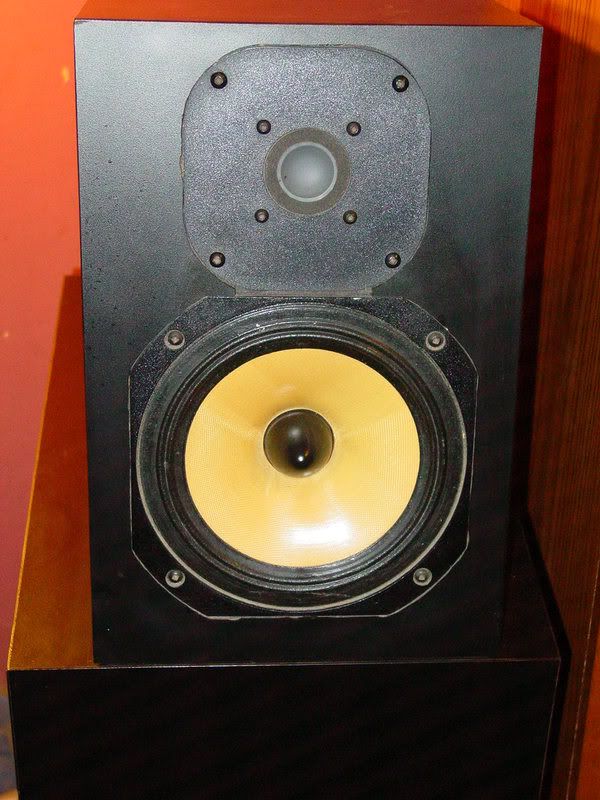

This is the Polk RTA-15TL speaker with the new RD0198-1 tweeter:




ADDING SUPER TWEETERS

Craziness did not stop with replacing the tweeters. I had to do something else and that something else cost me a lot of money. The final step was to add a pair of ribbon super tweeters. Letís hope this is the final step. Super tweeters cost from a couple of hundred dollars to a couple of thousand dollars. Initially, I was tempted to buy Townshend super tweeters, but they cost $1,400 a pair. After exhaustive research, I settled for a pair of LCY 100K super tweeters from E-Speakers.Com for about $580, including tax and shipping. Their frequency reponse are rated up to 100kHz with two built-in crossover settings. They also have a beautiful metallic case with locks. The reviews are very good.

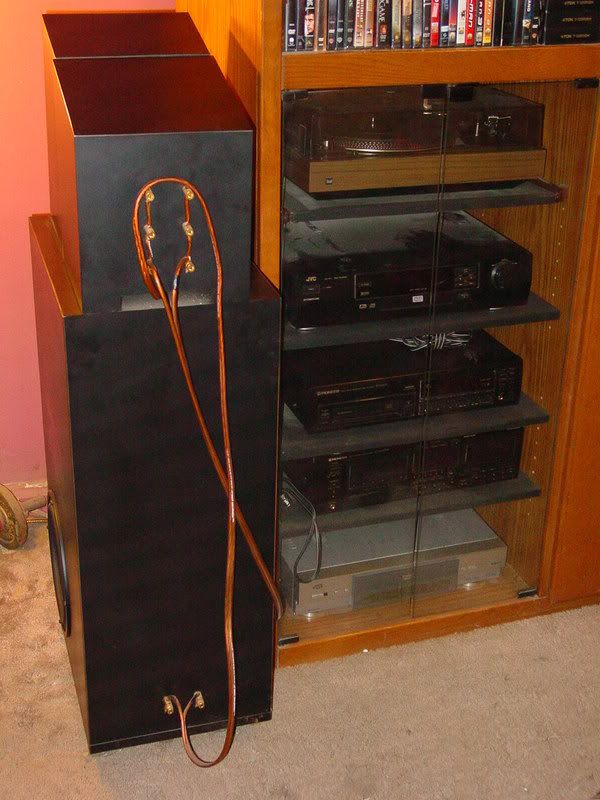

Attaching them is very easy. You simply connect them to the binding posts of the main speakers and place them on top of your speakers. You can tweak their position and direction a little bit until you get the desired sound.






The speakers sound so much better. I just listened to Dead Can Dance: Into the Labyrinth. The CD has a lot of high and low frequency music in it. I am not exaggerating, the improvement in sound is almost 100%. I hear things that I never knew existed on the album. After an added subwoofer, new tweeters, and a pair of super tweeters, I believe the speakers have been converted to $20,000 speakers. This is a picture of the equipment that drive the Polk speakers.




Polk Audio Silk Dome Tweeters:
1-800-377-7655
http://www.polkaudio.com
2 x RD0198-1, $100 (with Club Polk discount)
HT Room: Panasonic PT-AE8000, Epson 1080UB Proj., Mitsubishi 65" Diamond Series HD TV, Yamaha-RX-A3010 Rec., CinePro 6-Ch. Amp. (350 W/Ch, 8 Ohm), Proton D1200 Amp., Behringer EP4000 & EPX3000 Amps., Oppo BDP-83, Sony BDP-S790, Audio Technica Tuntable, Mitsubishi S-VHS, 2 Def. Tech. Super Towers w 15" subs, 1 Def. Tech. Center & 1 Martin-Logan Center, 2 Def. Tech. Surr. & 2 PSB Surr., 2 Cadence Presence, 2 Bose 901 Rears, 2 Modified HSU 12" Subs, 1 ED DIY 12" Sub, 1 ED DIY 15" Sub, Velodyne SMS-1 Subwoofer Equalizer, DirecTV HD, Monster HTS 5000 & APC H15 Power Conditioners.
Two-Channel Room: XiangSheng Tube Preamp., Carver TFM-45 Amp. (375 W/Ch), Behringer EPX4000 Amp., Onkyo CD player, Denon Turntable, Yamaha Tuner, 2 Vintage Polk RTA-15TL Speakers, 2 LCY 100 Super Tweeters, 2 DIY Folded Horn Super Towers with 15" Sub., 1 Modified AA HD-SUB12
Family Room: Mitsubishi 73" Diamond Series TV, Yamaha DSP-A3090 Rec., DirecTV HD-DVR, PS3, Zvox Speaker, 1 DIY 12" Sub.

Last edited by Big Daddy; 06-02-2010 at 05:50 AM.
