Panasonic UB820/UB9000 4K UHD Blu-ray player

[Kris Deering]

Originally Posted by makeusleep

I have the JVC RS500 about 13 ft away from a 133" 1.0 gain screen. I downloaded the BT2020 color profile to use with sdr to hdr. I am receiving the 820 today. Best settings would be sdr to hdr with hdr optimizer turned on? Will I still have the use of the RS500 dynamic iris with these settings. Thanks for your help!

Yes. Set gamma for 2.4 and color profile to BT2020. I would set HDR Optimizer to On and start with the slider at 0. Good luck.

[Kris Deering]

Originally Posted by COACH10810

Cool. I will stick with my low HDR curve, HDR Optimizer set to "On", with the standard setting. Then see how it performs tonight.

Optimizer set to On may complicate things if you are actually sending an HDR signal to the projector. I would just use the standard HDR out with your low curve and compare that to SDR2020 out without your curve (gamma set to 2.4). But you can try it the other way and see.

[edwinvs]

Originally Posted by Robert Zohn

I have an engineering sample of the UB9000 and although I've only tested the UB9000 remote on most of the functions they all worked fine of our UB820s.

Thanks Robert. So the UB820 understands the functions that are missing on its own remote. That will certainly make me buy the UB9000 remote once it becomes available.

[evan201]

Robert,

Please call my boss and tell him to let me out early today so I can go home and play with my new 820. =)

Thanks for the awesome service.

[Robert Zohn]

Originally Posted by edwinvs

Thanks Robert. So the UB820 understands the functions that are missing on its own remote. That will certainly make me buy the UB9000 remote once it becomes available.

I'll test it more thoroughly and get back here.

Originally Posted by evan201

Robert,

Please call my boss and tell him to let me out early today so I can go home and play with my new 820. =)

Thanks for the awesome service.

I called the a/v gods and asked for assistance, but have not heard back yet. Hang in there.

[COACH10810]

Originally Posted by Kris Deering

Optimizer set to On may complicate things if you are actually sending an HDR signal to the projector. I would just use the standard HDR out with your low curve and compare that to SDR2020 out without your curve (gamma set to 2.4). But you can try it the other way and see.

Well we just finished watching "The Greatest Showman". What a fantastic audio and video presentation it was.

I ended up watching half the movie with my low lamp HDR mode and the second half with the high lamp HDR mode....Both had the "HDR Optimizer" turned "ON" with the HDR mode set to standard.

After the movie was over I re-watched several scenes with my low lamp HDR mode, but changed the HDR setting to "Natural Environment". This put the slider at +4. Seems like this is as close to my high lamp mode I can get, but keeping it in low lamp.

Now that I have done that and then read what you wrote, I am wondering if the Optimizer was really doing anything at all being engaged.

Sorry for sounding so uneducated.
Should the HDR Optimizer be set to "ON" only if you change the signal to SDR 2020(in the Panasonic menu)?
Then selecting the low lamp curve Chad installed?

Then are the HDR settings of "Standard", "Light Environment, ETC only to be used when you turn the HDR optimizer to the off position?

I feel confused now... lol

Thanks.

[COACH10810]

Okay....let me ask a simpler question then.

What is the best way to setup and use the UB820 if you have really good HDR Curves already?

As far as the internal settings go.

[Clark Burk]

Originally Posted by Kris Deering

Optimizer set to On may complicate things if you are actually sending an HDR signal to the projector. I would just use the standard HDR out with your low curve and compare that to SDR2020 out without your curve (gamma set to 2.4). But you can try it the other way and see.

Kris, when will we get to see your review of the 820? I’d love to hear your thoughts on the best way to use the 820 with a projector and the settings you have found to be best.

[Kris Deering]

Originally Posted by COACH10810

Okay....let me ask a simpler question then.

What is the best way to setup and use the UB820 if you have really good HDR Curves already?

As far as the internal settings go.

For a projector I would recommend using the SDR2020 mode and not using your curves at all (at least compare the two and figure out which gives you the image you want). If you want to use your curves, go into the HDR setup menu in the main setup and select projector for the display type. Then turn on HDR Optimizer. This will tone map down to 500 nits. I can't imagine this would work well with Chad's curves though, but you never know (I don't have his curves to try out).

[COACH10810]

Originally Posted by Kris Deering

For a projector I would recommend using the SDR2020 mode and not using your curves at all (at least compare the two and figure out which gives you the image you want). If you want to use your curves, go into the HDR setup menu in the main setup and select projector for the display type. Then turn on HDR Optimizer. This will tone map down to 500 nits. I can't imagine this would work well with Chad's curves though, but you never know (I don't have his curves to try out).

My goal for today or tomorrow will be the following.
1. Turn on SDR2020 and use my Gamma 2.4. Then run through the same scenes I did last night.
2. Compare the curves I have with Gamma 2.4

Couple more questions:

Are you suggesting comparing Gamma 2.4 vs. my curves, while keeping the projector in SDR 2020 mode?

When you suggested turning on the HDR Optimizer, would be done with my Chad curves? Do I run the HDR mode in standard?

Thanks,

[curlyjive]

I tested turning the optimizer on and off with all sliders set to 0 when outputting sdr bt2020. I saw no change at all.

[Robert Zohn]

What setting did you set the HDR Optimizer at ^ and what is your TV or projector?

[ryanmcv]

PANASONIC DP-UB820 4K Blu-Ray Player | Best Player of 2018? - YouTube

[elwaylite]

Price and feature set, it has a claim... Just need to get Amazon and some other apps on.

[evan201]

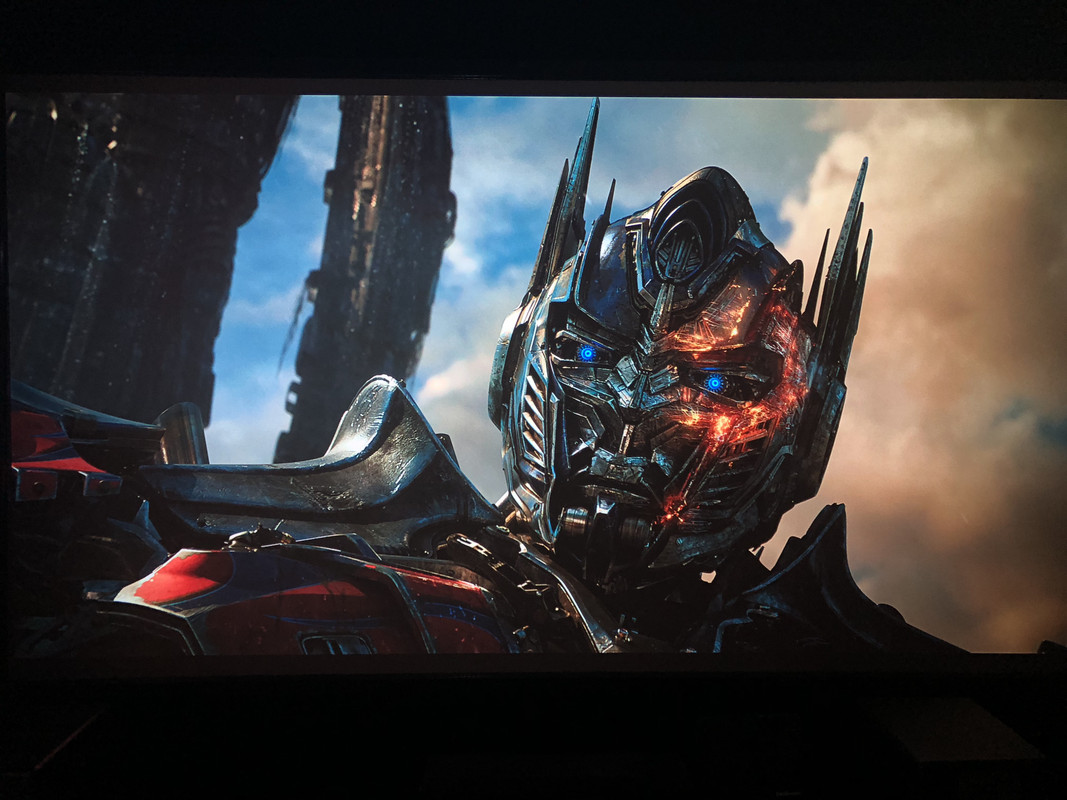

Ok. I'm thoroughly impressed. Tons of HDR control and even the HDR>SDR conversion while keeping BT2020 4:2:2 looks amazing. I'll be sticking with the HDR signal.

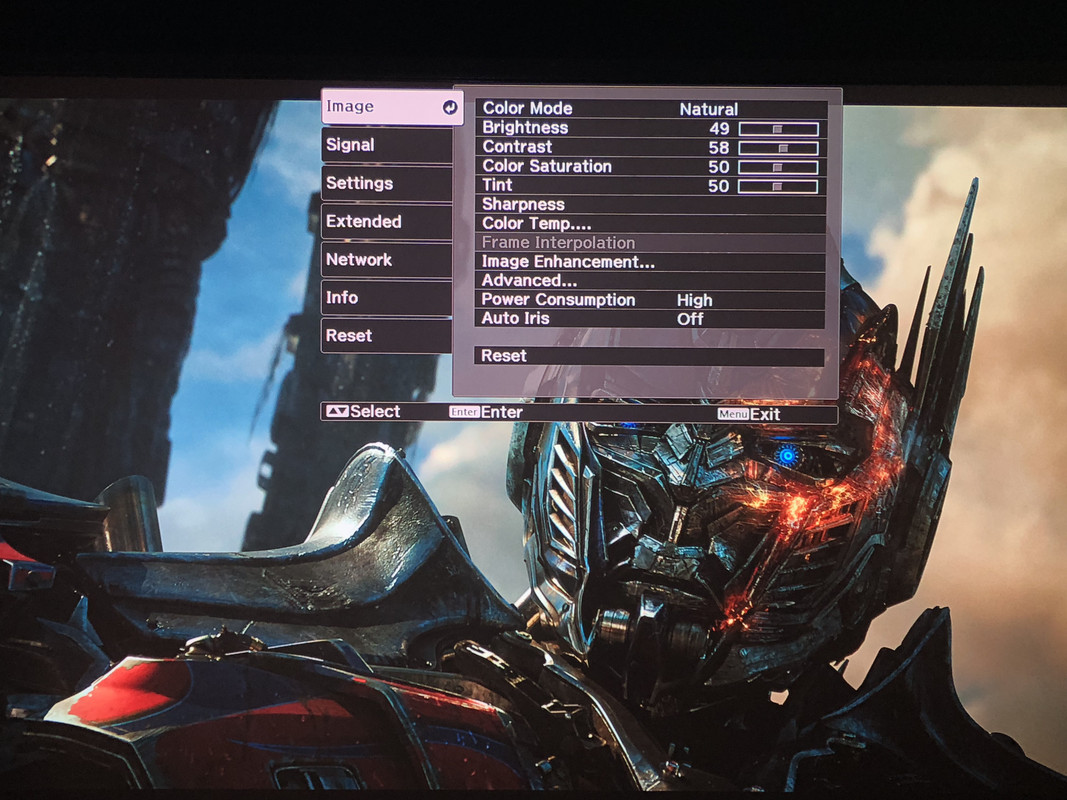

My Epson dynamic range in signal menu is set to "auto" instead of "auto-bright" and gamma at 0, color temperature at 6500k in natural mode.
On panny, HDR optimizer is on and color adjustment is boosted to +12. Nothing else.
Display type set to Basic/Projector for optimizer.
HUGE step in the right direction from my old Phillips BDP7501.

[elwaylite]

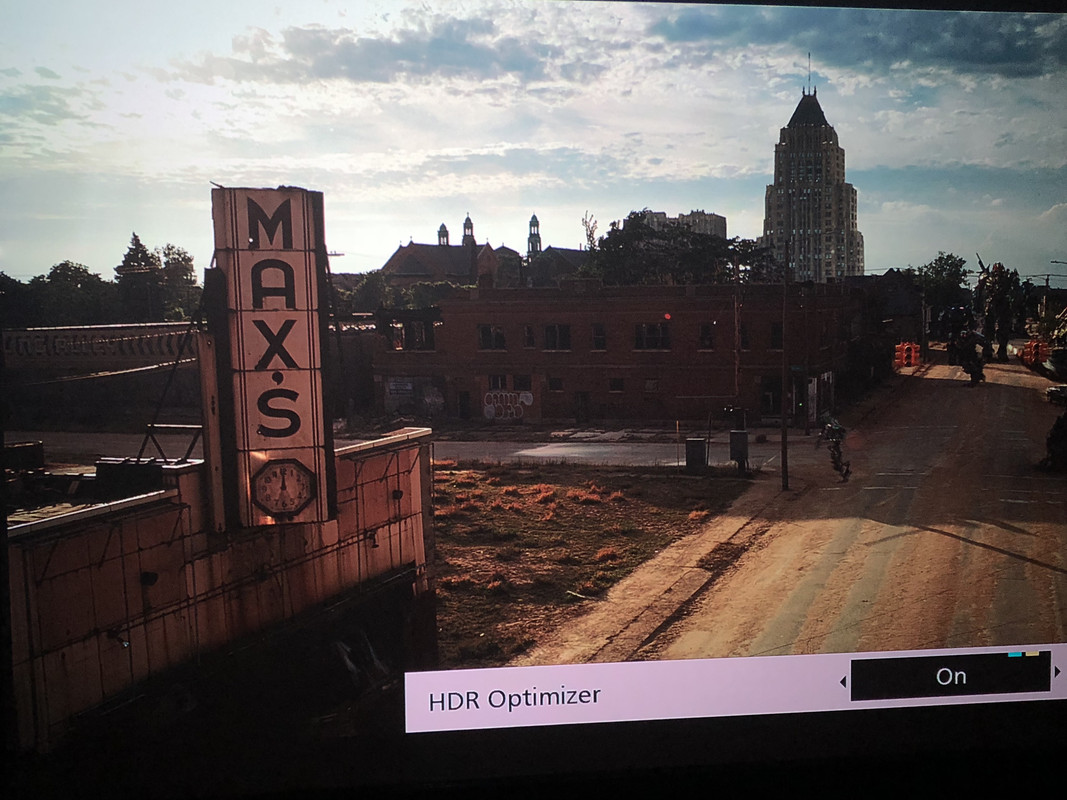

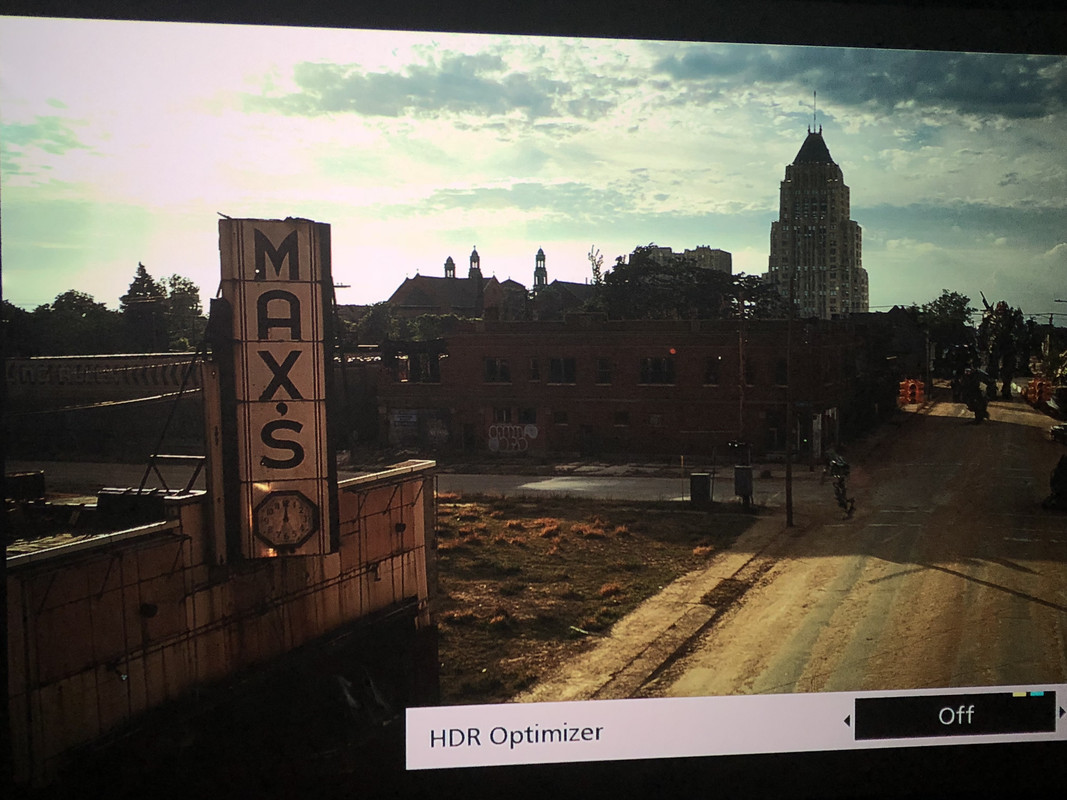

HDR Optimizer really is a cool thing.

[evan201]

Do you guys know if there is a way to time stamp a scene to return to it quickly?
Used to be able to do this with my Phillips. The player also isn't remembering where I left off and asking if I want to "resume" when reloading a disc. Any ideas?

[curlyjive]

Originally Posted by Robert Zohn

What setting did you set the HDR Optimizer at ^ and what is your TV or projector?

I am outputting sdr bt2020 to a jvc rs4910, which does not do hdr. So I am not sure what turning on the optimizer actually does in that case. The dynamic range control makes a noticble change when turned up or down.

[evan201]

Originally Posted by curlyjive

I am outputting sdr bt2020 to a jvc rs4910, which does not do hdr. So I am not sure what turning on the optimizer actually does in that case. The dynamic range control makes a noticble change when turned up or down.

HDR optimizer doesn't do anything when SDR signal is being played as far as I can see either. The range adjustments do.

[LordoftheRings]

Originally Posted by elwaylite

HDR Optimizer really is a cool thing.

Yes, I think everyone should have one.
