HDR heatmaps and torch mode UHDs

[UFAlien]

Backdraft
Universal - USA
HDR Formats: HDR10

Measured Max Peak Brightness: 1,342 nits
Measured Max Frame Average: 909 nits

Mastered with a very wide brightness range that frequently peaks over 1,000 nits. Dolby Vision would probably have been nice to have but brightness didn't generally seem to be an issue on my OLED, apart from the ABL kicking in noticeably for several full-frame explosions and such. There's strong use of the P3 color space, mainly for reds and oranges, as you'd expect given the subject matter.

The biggest drawback is the compression; this movie is well over two hours and full of smoke and fireballs and water droplets and other challenging material, yet it's squeezed onto a two-layer disc with a relatively low bitrate. Most of the movie looks fine but there are definitely times during the action sequences when compression artifacts become clearly visible, often manifesting as rainbow chroma noise with a bit of blockiness as well.

Still a pretty solid watch but definitely could've been handled better.

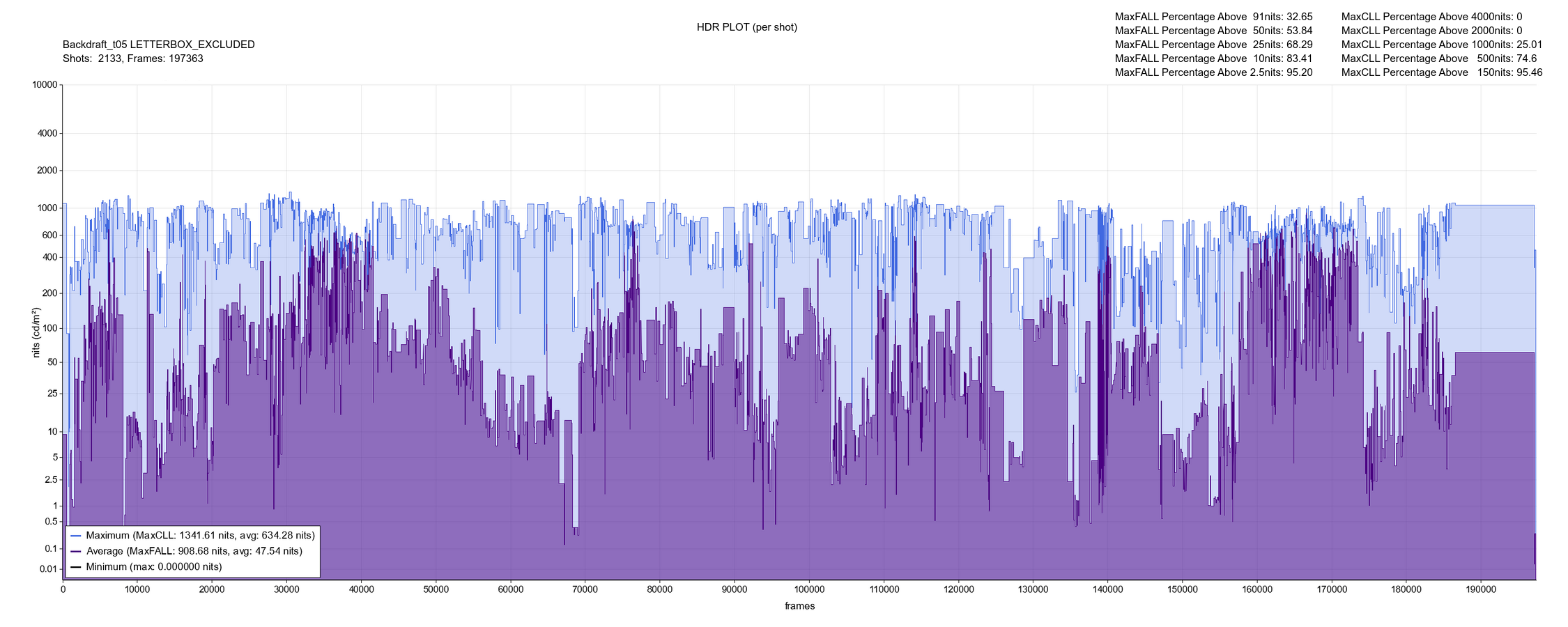

HDR brightness plot:


HDR Heatmaps:


WCG Visualization:

[nissling]

Spears & Munsil UHD Benchmark 4K (Spears & Munsil)

HDR10, Dolby Vision and HDR10+
Mastering display luminance: 10000 nits white level, 0.0050 nits black level
MaxCLL: 10000 nits
MaxFALL: 1667 nits

This is the 2023 release. It's really bright (d'uh), reaching 10,000 nits at several instances.

Imgbb have been unreliable to me so this time I'm sharing the albums through Google Drive. Hopefully this is okay.

Heatmaps

[Show spoiler]

Gamut visualization

[Show spoiler]

Tonemaps (BT.2100 to BT.709)

[Show spoiler]

[nateify]

Paprika (2006)
HDR Formats: HDR10 and Dolby Vision FEL

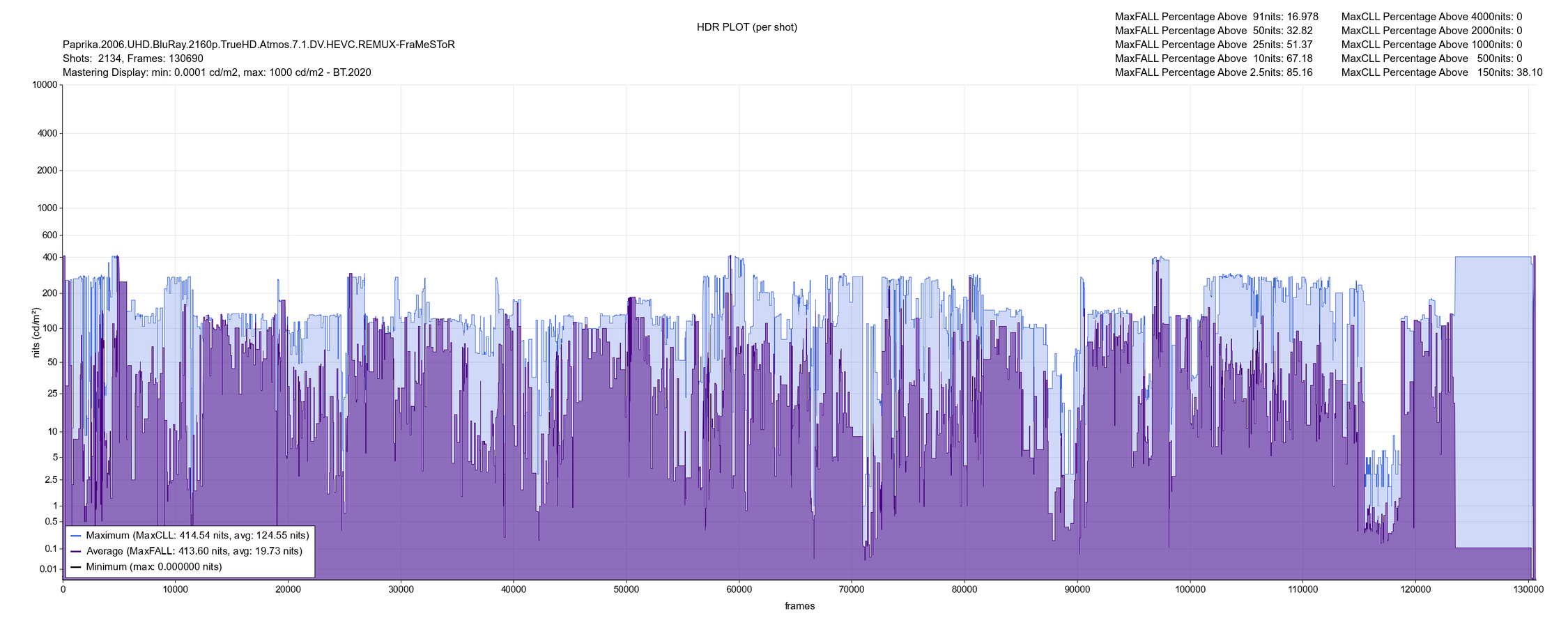

HDR brightness plot:

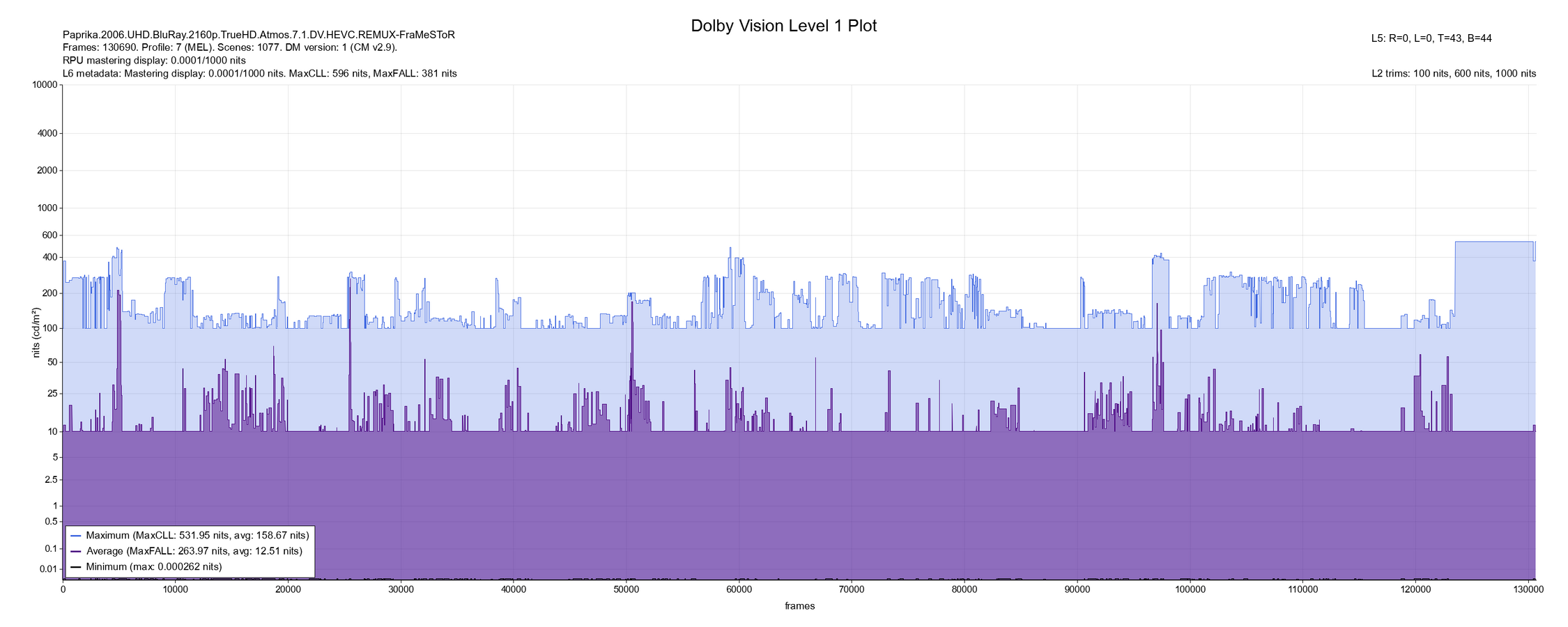

Dolby Vision Metadata plot:


HDR Heatmaps:

[Show spoiler]

WCG Visualization:

[Show spoiler]

[UFAlien]

Twister
Warner Bros. - USA
HDR Formats: HDR10

Measured Max Peak Brightness: 1,336 nits
Measured Max Frame Average: 1,134 nits

I haven't actually watched this properly yet so I can't comment on the subjective experience of viewing it in HDR. I was surprised to see how much variation there was in terms of highlight brightness; as you can see here sometimes the literal sun is kept under 200 nits but other times a truck headlight will exceed 1,000. Of course this is all how the director wanted it, given Jan de Bont was personally involved with the remaster.

A couple of the storm scenes - mainly the first tornado encounter and the leadup to it - have been given a very strong green tint, which matches character dialogue. Thankfully it's not just a blanket tint, as the strongest "greenage" is reserved for the sky and clouds while the roads and vehicles underneath will have a more normal color. It was done with some finesse.

The movie makes pretty consistent use of the P3 color space. Any Rec. 2020 colors appear to be basically incidental spillover.

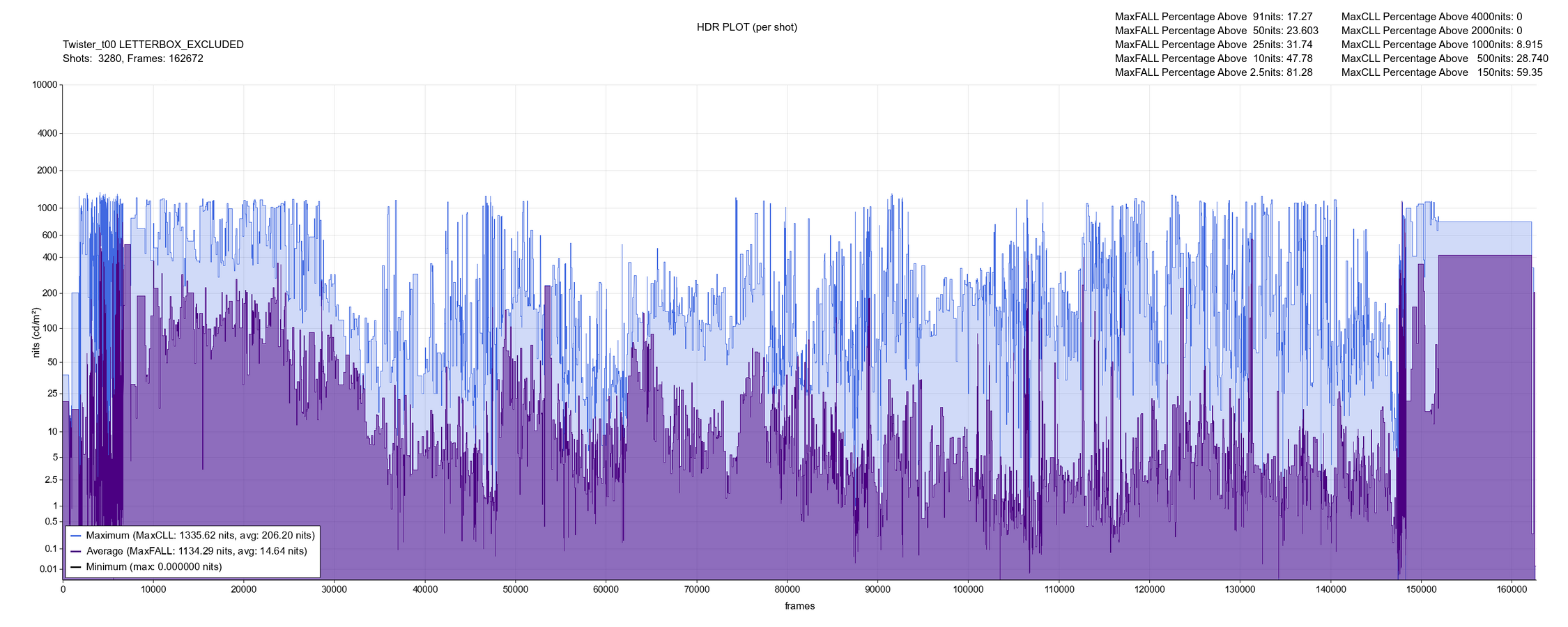

HDR brightness plot:


HDR Heatmaps:


WCG Visualization:

[matty746]

I just wanted to thank everyone that contributes to this thread, i check it almost daily.

[UHDLoverForever]

Could someone do Tár?

[Fjodor2000]

If someone could analyze the Blue Velvet 4K BD it would be really nice. Looks a bit dark to me from screenshots I've seen, but who knows what the analysis will show.

[dorian]

Chinatown (1974)

MaxCLL plot:

[Show spoiler]

MaxFALL plot:

[Show spoiler]

Bitrate plot:

[Show spoiler]

The following shots are representative of the MLL & FALL peaks.

MLL peaks:

[Show spoiler]

FALL peaks:

[Show spoiler]

Chromaticity & Gamut maps:

[Show spoiler]

Mostly within 709. Not that that's an issue.

[matty746]

Any chance one of you guys could do the Godfather trilogy?

[nissling]

Originally Posted by matty746

I just wanted to thank everyone that contributes to this thread, i check it almost daily.

Glad you like it.

I listed the majority of my UHD-BDs yesterday so if anyone want me to check something in my collection just let me know.

[UHDLoverForever]

Originally Posted by nissling

Glad you like it.

I listed the majority of my UHD-BDs yesterday so if anyone want me to check something in my collection just let me know.

I'm struggling to find your list. Where is it? I checked your post history and didn't find the list.

[nissling]

It's in my collection here on Blu-Ray.com. You can find it right under my avatar, to the left...

[trevorlj]

Originally Posted by nissling

I listed the majority of my UHD-BDs yesterday so if anyone want me to check something in my collection just let me know.

An analysis of Flatliners would be interesting!

[Amiibro121]

Originally Posted by nissling

I listed the majority of my UHD-BDs yesterday so if anyone want me to check something in my collection just let me know.

Early 2016 4ks you own like the lego movie and life of pi would be interesting to analyze .
I'd like to see you get to lugosi dracula, inside out, dark crystal, evil dead, carrie, and creepshow. (Perhaps hdr gradings I don't enjoy much like toy story 3 and ran too)

[UHDLoverForever]

Originally Posted by nissling

It's in my collection here on Blu-Ray.com. You can find it right under my avatar, to the left...

Thanks, I saw your collection now! These are the movies I would like to see you analysing if they haven't been done already.

All Bruce Lee films
All Rocky films
Anatomy of a Murder
The Big Lebowski
Citizen Kane
Cool Hand Luke
Dracula (1931)
Double Indemnity
East of Eden
The Elephant Man
Frankenstein (1933)
From Here to Eternity
Inside Out
It Happened One Night
Labyrinth
Paths of Glory
Ran
Schindler's List
Soul
Spartacus
Stand By Me
Suspiria
The Alfred Hitchcock Classics Collection Vol. 2
The Dark Crystal
The Deer Hunter
The Man Who Shot Liberty Valance
The Night of the Hunter
The Shining
The Sting
The Ten Commandments
The Train
The Wages of Fear
To Kill a Mockingbird
To Sir with Love

[nissling]

I thank you for the suggestions, will probably do Flatliners then. Some of them have already been analyzed by either me or someone else.

I'd also like to inform that each title usually takes me between 6 to 10 hours of work to complete (sometimes more) so don't expect me to do 20 films per week. :P

[UFAlien]

The Guyver
Unearthed Films - USA
HDR Formats: HDR10

Measured Max Peak Brightness: 1,728 nits
Measured Max Frame Average: 679 nits

A pretty strong showing for this low-budget cult piece that never got a standard Blu-ray. It's a very grainy movie but the grain field is mostly resolved quite well. There's a very wide dynamic brightness range, but even on my OLED (which needs a lot of tone mapping for the highlights) it consistently looked quite good, neither too bright nor dark. There's a pretty conservative use of the wide color gamut, but things occasionally poke over into intentional use of the P3 space.

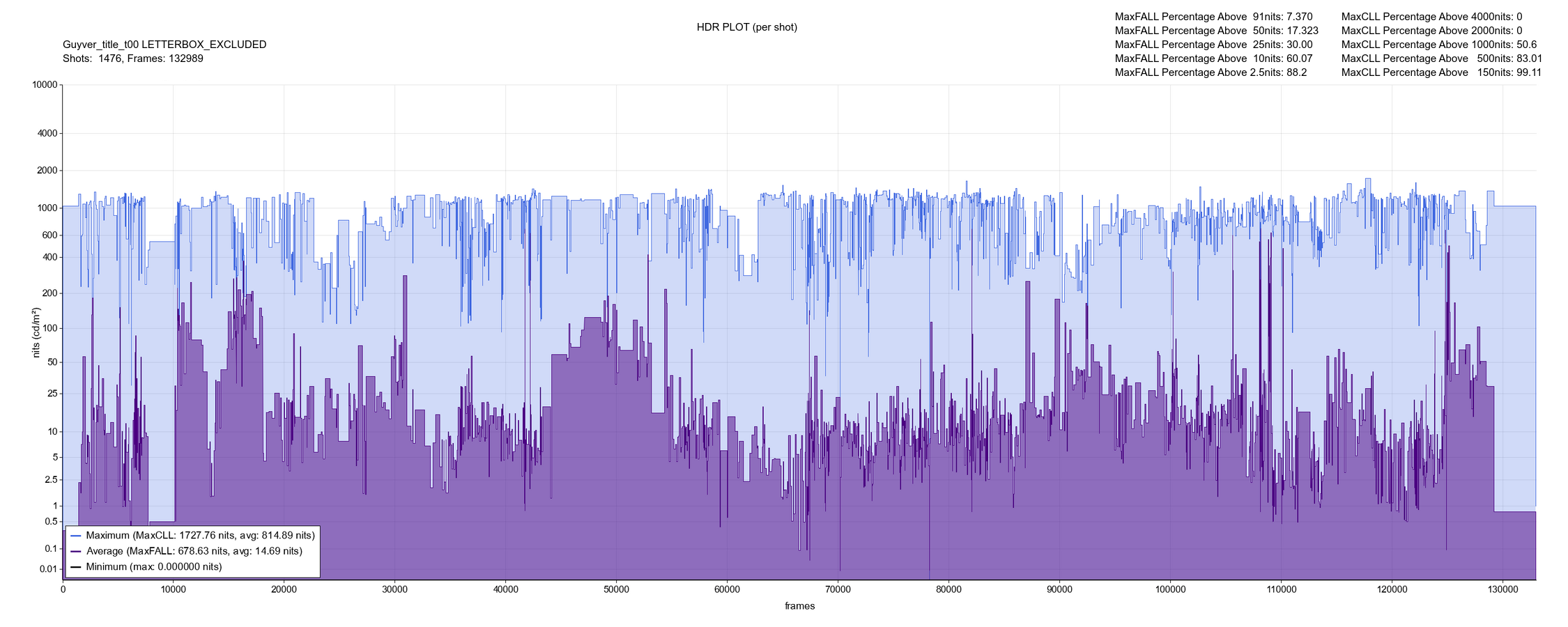

HDR brightness plot:


HDR Heatmaps:


WCG Visualization:

[mrtickleuk]

Originally Posted by nissling

I thank you for the suggestions, will probably do Flatliners then. Some of them have already been analyzed by either me or someone else.

I'd also like to inform that each title usually takes me between 6 to 10 hours of work to complete (sometimes more) so don't expect me to do 20 films per week. :P

Yes, I was going to caution about duplicates. I think anyone asking for something has a duty to search this thread FIRST to check!

[Macatouille]

Originally Posted by mrtickleuk

Yes, I was going to caution about duplicates. I think anyone asking for something has a duty to search this thread FIRST to check!

If it helps, I just updated the past posts list with everything from the past page or so.

[matty746]

I vote for Schindlers list, but regardless you are appreciated.
